Description

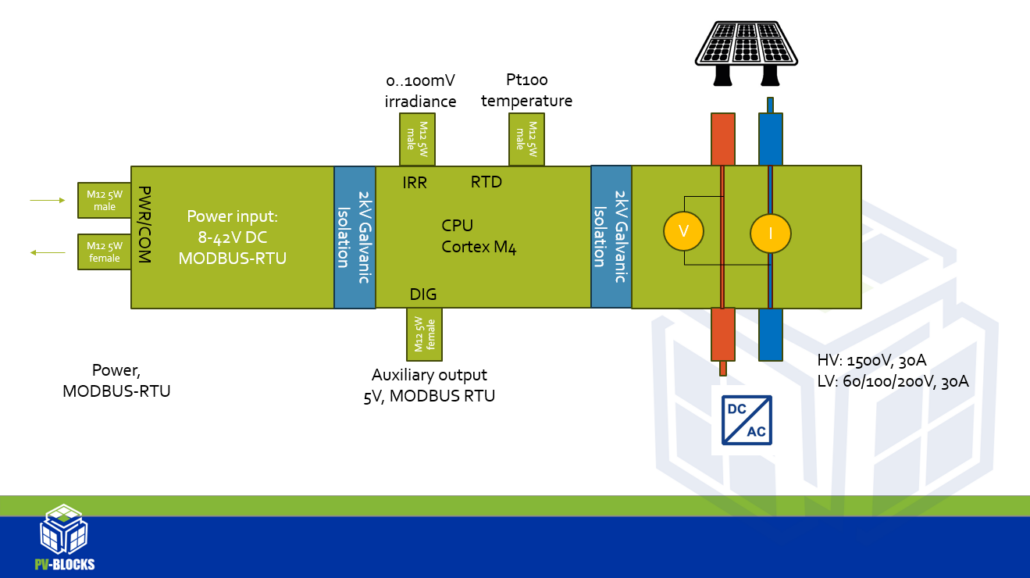

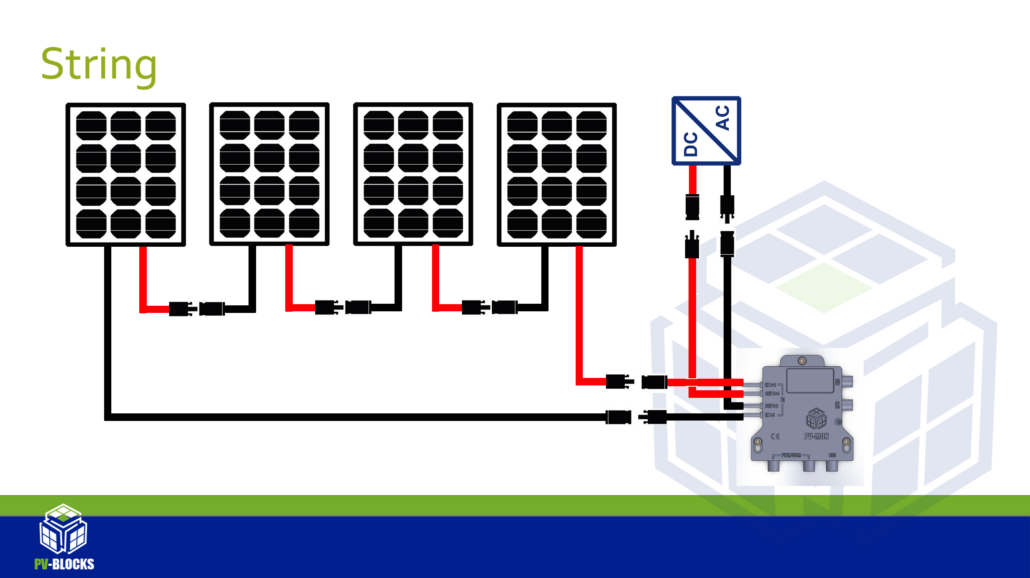

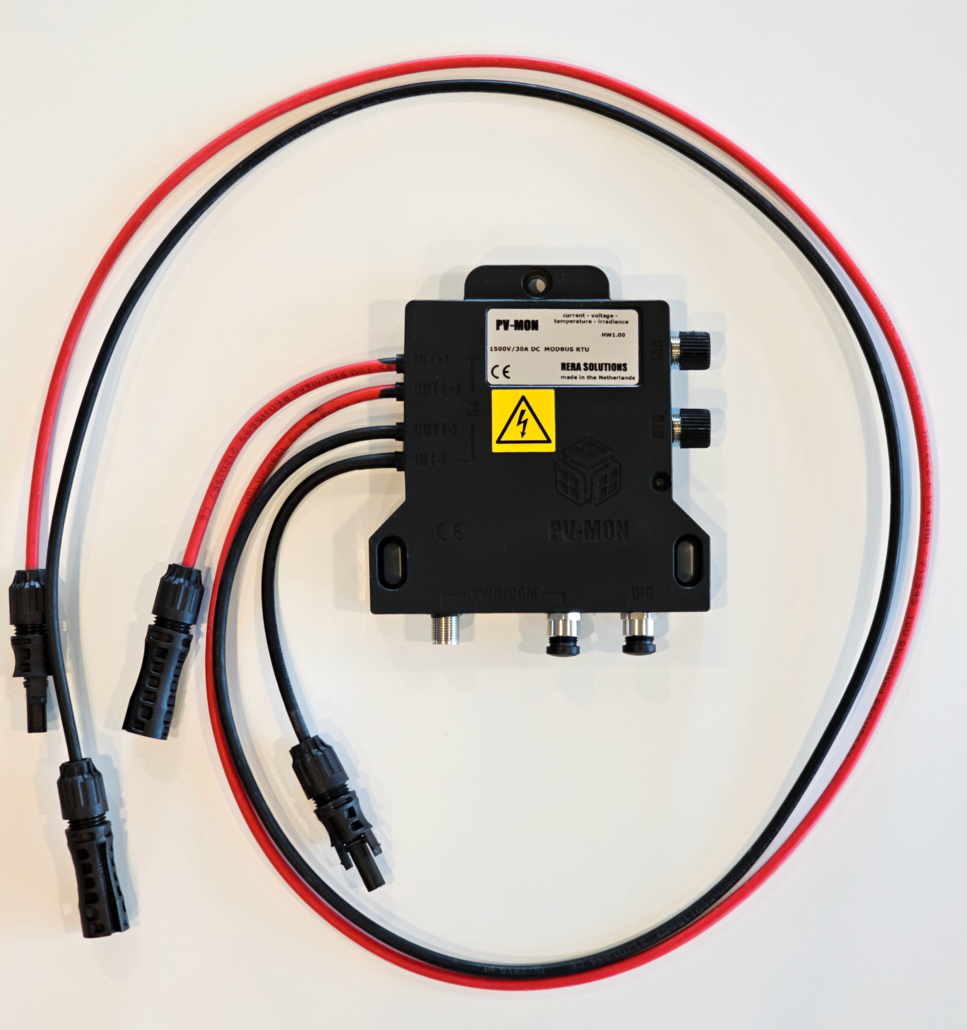

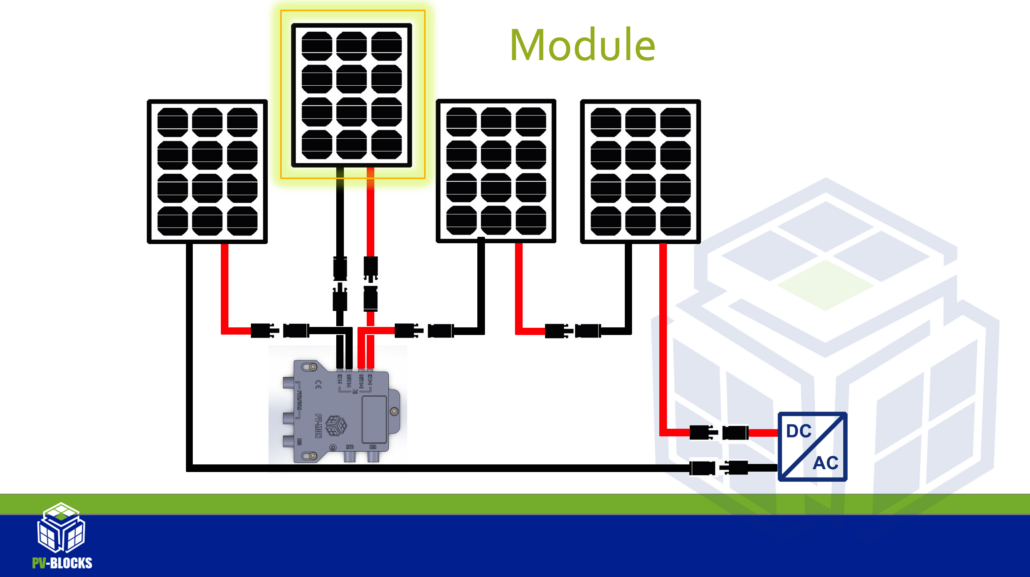

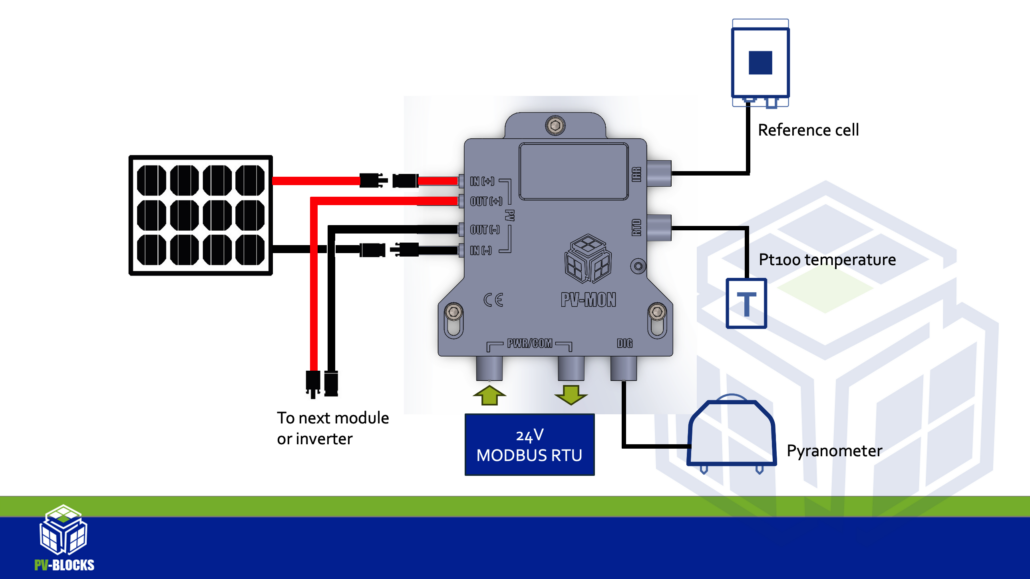

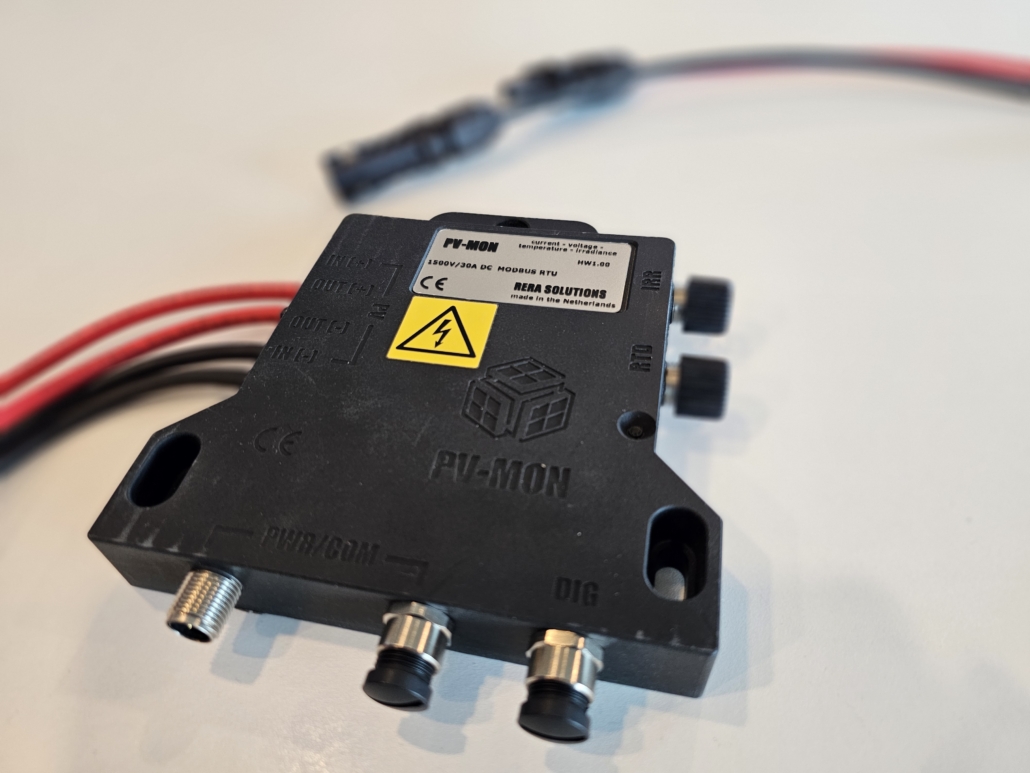

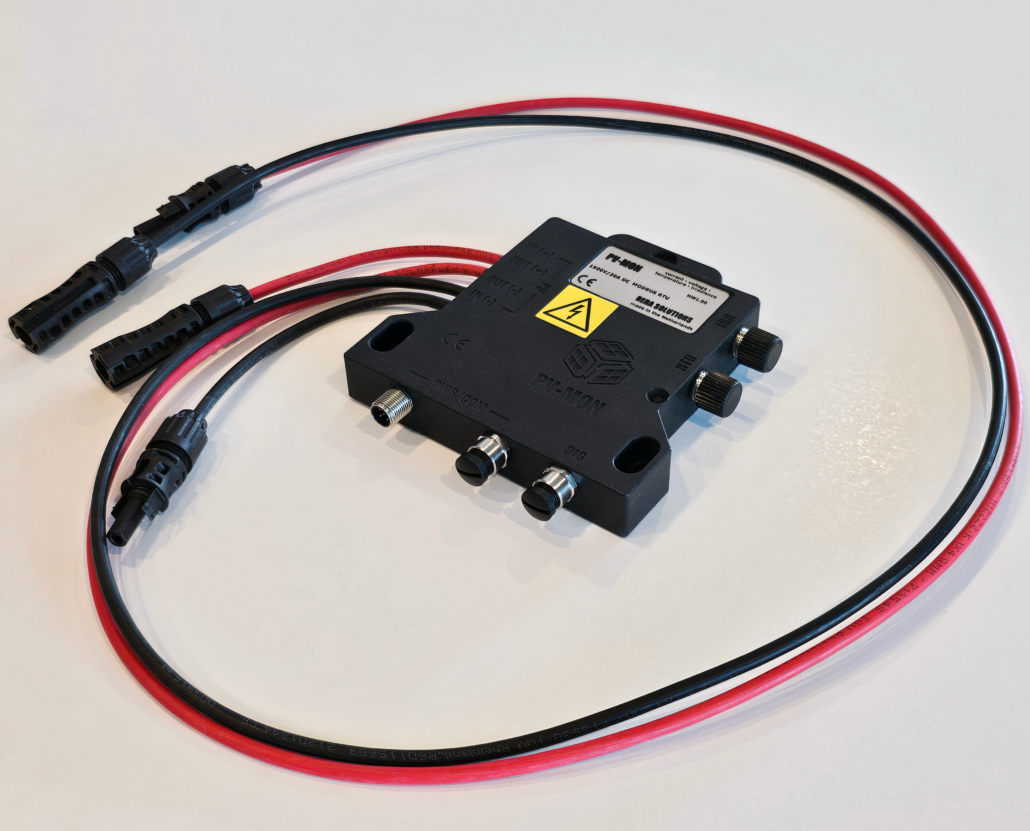

The PV-MON block is a standalone DC measurement device that can be used for scientific applications. The block can be connected to individual modules or complete strings to measure the DC voltage and current. The instrument has an input for a Pt100 temperature sensor, an analog irradiance device and a digital irradiance sensor.
The 1500V input assures the usage of this high precision instrument in any PV application.
Main features:
- Standalone and PV-Blocks integration (PV-MOD-DC)

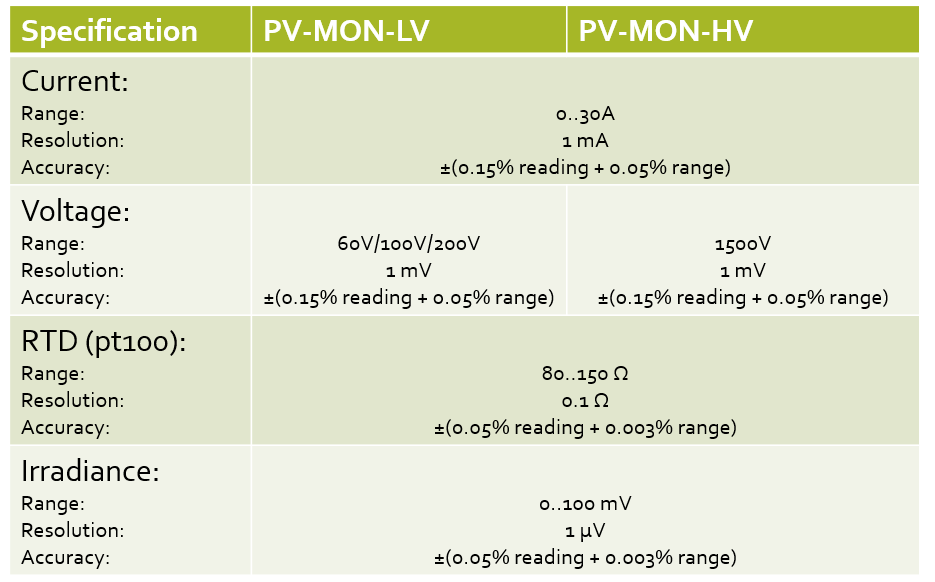

- Voltage range software configurable: 60V, 100V, 200V, 1500V
- Current range: up to 40A
- 4 wire Pt100 RTD input
- Analog irradiance sensor input (0..100mV)
- Digital irradiance sensor input (MODBUS-RTU)
- IP68
